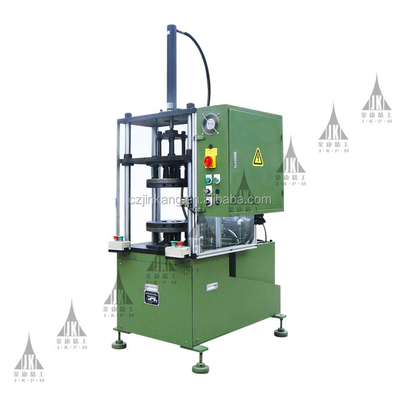

Product introduction(JK-ZX05):
With hydraulic transmission and electrical integrated control ,this machine is used for the final forming of small to middle motor stator producing, it conducts the extruding forming to the stator end coil’s OD,ID and height through OD forming sliding block, ID forming expanding core, to achieve the required coil sizes and meet motor assembly condition. Equipped with automatic driving and reversing mechanism for stator station.
fully hydraulic system, industrial PLC design;
independent 3D forming;
tact time≤15s/set;
motor and hydraulic system: KOMPASS from Taiwan;
sensor elements: OMRON from Japan, SCHNEIDER from Germany;
other parts: AIRTAC from Taiwan, TEND from Taiwan, DELIXI from China, SCHNEIDER from Germany.
Technical Data:
| Stator core stack height | 15mm-160mm |
| Max. Stator O.D. | φ200mm |
| Stator I.D. | φ30-130mm |
| Displacement of oil pump | 20F |
| Power supply | 380V/ 50HZ Three-phase four-wire |
| Power | 1.5KW |
| Dimension(L*W*H) | 630mm * 1300mm * 2000mm |
| Weight | ≈1000kg |
| All the referanced technical parameters can be designed and manufactured according to customer's request. | |
Product show (JK-ZX05):
forming tooling
PLC controller
Kompass hydraulic station
finished stator
The outer packing(JK-ZX05):
Product scheme(JK-ZX05):
Other types of products:
Certificate:
Company profile:
Changzhou JinKang Electromechanical Group is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 300 employees, including more than 50 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2008, Jinkang passed the certification of ISO9001:2000 Quality Management System.
Research and development :
The full-time R&D team is led by industry expert Mr. Cheng Bing, including 4 senior engineers, 10 engineers & 5 assistant engineers.Changzhou New District Jinkang Precision Mechanism Co., Ltd. has set up a good management system oftechnical innovation and an incentive system of R&D staff performance assessment. Changzhou New District Jinkang Precision Mechanism Co., Ltd. always provides strong financial support for R&D activities.
Partners:
During the past over 10 years,we have cooperated with a lot of customers domestic and abroad,some of which are well-known companies,such as A.O.Smith,Emerson,Siemens,Panasonic,WEG,Bosch etc,and our market has expanded from Asia to Mid East,Europe and South America.
Equipment spare parts:
Service:
OEM supplier
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
Jinkang—Professional, Quality, Service.
