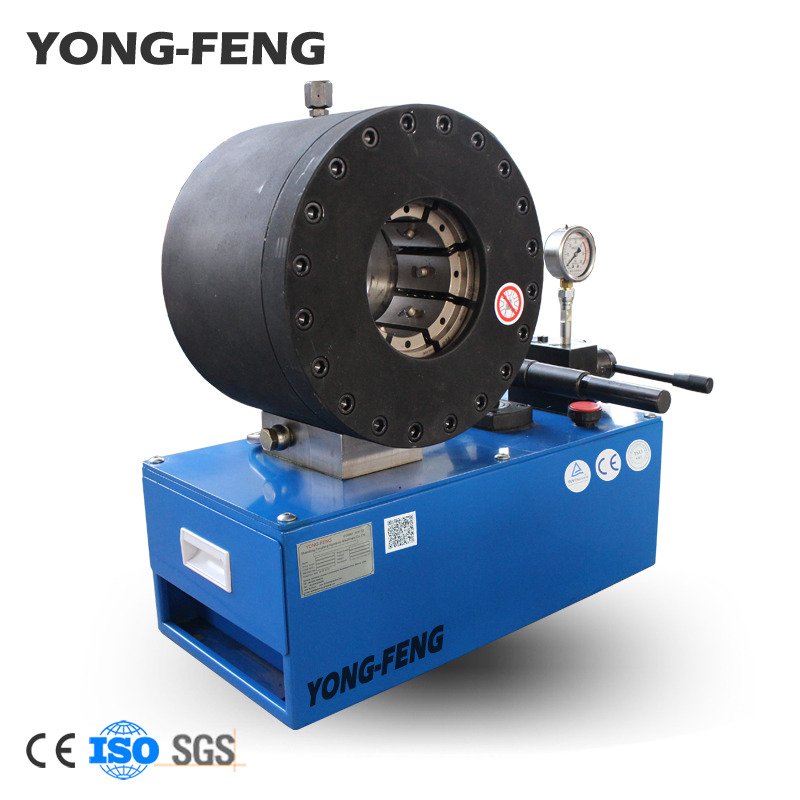

Factory Pressing Hydraulic Hose Equipment Manual Hose Crimping Crimping Machine

1 Set
MOQ
Factory Pressing Hydraulic Hose Equipment Manual Hose Crimping Crimping Machine
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Condition: New
Machine Type: Hose Crimping Machine
Voltage: None
Dimension(L*W*H): 500*300*460 mm
Weight: 130KG
Warranty: 3 years
Key Selling Points: Easy to Operate
Showroom Location: Peru, India, Russia, Thailand
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Peru, India, Russia, Thailand
Certificação: ISO9001:2008/CE/SGS
Crimper Model: YONG-FENG F20M
Crimper OEM: Yes
Crimper Range: 6-32mm
Max Opening: 80mm
Crimper Dies: 8 sets
Operating Mode: Manual
Crimping Force: 137T
Crimper Color: Blue or custom Made
Informação básica
Certificação: ISO9001:2008/CE/SGS
Model Number: YONG-FENG F20M
Condições de Pagamento e Envio
Packaging Details: Standard export package, custom suffocating free. Inner PVC bags and outer wooden case.
Descrição de produto
Product Description

Main Features

1) Using forge steel machine head, this kind of steel is more durabler than general steel.
2) Simple controls and operation.
3) Small body, simply designed, convenient for operating and carrying.
4) Suitable for outdoor work without electric power.
5) Magnetic dies (Patented), very convenient to remove and install dies.

Product Parameter





Main Performance Parameters
Model
F20M Crimping Machine
Crimping Range
up to 1 1/4" or 32mm
Max Opening
3 1/7" or 80mm
Crimping Force
230T
Mold Opening Time
1.2s
System Pressure
31.5Mpa
Operation Mode
Manual
Power Voltage
None
Matching Power
None


Machine
Specifications
Machine Head
Forge Steel
Dimension (L*W*H)
500×300×460mm
Net Weight
135kg
Die Sets
8sets
Length of Dies
65mm

Product Application

Model F20M manual hose crimping machine is a portable type of machine which is simply designed and convenient for operating and carrying. It takes manual pump of extra high pressure as power source. So it's suitable for the outdoor work and production without electric power. F20M manual crimping machine is mainly used for crimping processing for high pressure hydraulic hose assembly in the mechanical engineering. It can also be used for crimping steel pipes, irregular shape pipes and so on.

Detailed Images

Machine Head

Attribute: Forge Steel

Original: Germany Technology

Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.

Dies & Mold Base

Attribute: Strong Magnetic Connection

Original: YONG-FENG(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent.

Machine Body

Attribute: Anti-Rust Spray
Original: American Material
Machine surface is processed by Anti-Rust Spray, compared with traditional painting, it is more environmental friendly, good appearance, strong adhesion, mechanical strength, high capability of anti-wear and anti-rust.

Pressure Gauge

Attribute: Anti-shock Gauge

Original: China(Mainland)
F20M manual crimping machine is equipped with a high pressure anti-shock gauge, and it's max pressure can be up to 60Mpa. The implementation of standard is GB/T 1227-2002.

Certifications
Company Strength

Yongfeng Crimpers, the professional manufacturer of hydraulic hose crimpers, cutter, skiving machine, test bench, hoses & fittings assembly and accessories for over 20 years. Yongfeng Crimpers supply the Portable, On-site mobile, Workshop and Industrial hose crimpers, which have widely used in industries of hydraulic repair service of construction machinery, agricultural machinery, vehicle repair, production of industrial hoses, hydraulic equipments, On-site service, oil fields, mining hydraulic prop, greenhouse, galvanized steel pipes etc.

Yongfeng Crimpers have covered more than 20 domestic provinces and cities in China's markets and exported to more than 80 countries as follows: European market, such as Poland, Bulgaria, Germany, Italy, Denmark, Russia, Malta; American market, such as Uruguay, Mexico, Bolivia, Columbia, Canada; Oceania market, such as Vanuatu, New Zealand, Australia; Asia market, such as Sri Lanka, India, Pakistan, Philippines; Middle East market, such as Kuwait, UAE; African market, such as Algeria, South Africa, and so on.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory & Office.

After-Sales Service

* Warranty for 3 years.

* Training how to instal and use the machine.

* Provide free quick-wear part.

Payment Term

Trade Assurance

* PAY to our company's CITIBANK account designated by Alibaba.com with credit card or bank transfer.
* 100% product quality protection; 100% on-time shipment protection; 100% payment protection.

T/T

* 100% T/T in advance(normal models in stock).
* 50% T/T in advance, balance paid before delivery(for the customized models).

Packing & Delivery
Packing
Size
520(L) * 320 (W) * 480 (H)
Weight
150kg



Packaging Details

The normal package for our crimping machine is Wooden Plywood Crate. The outside package is standard export wooden case, and the inner package is stretch film or packaged according to customers special request.

Delivery

* The normal models of crimping machines are in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.

* Transportation, the first choice is shipping, air or land is also avaliable if customers have special request.
